Color Test Charts
The YE0106 is designed for checking the color rendition of TV cameras. The picture area is divided into six color bars showing the three primary colors red, green and blue and the secondary colors cyan, yellow and purple; in addition there i
| Model | YE0106 |
| Type | Reflective/Transparent |
| Format | Custom Designs |
| Ratio | 4:3/16:9 |
The YE0106 is designed for checking the color rendition of TV cameras. The picture area is divided into six color bars showing the three primary colors red, green and blue and the secondary colors cyan, yellow and purple; in addition there is one bar of white and black. The succession corresponds to that of an electronically generated color bar.

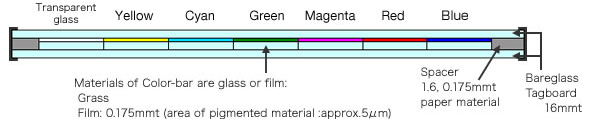

| Color | Transparent | Yellow | Cyan | Green | Magenta | Red | Blue |
|---|---|---|---|---|---|---|---|
| Density | 0.08～1.0 | 1.4～2.0 | 0.9～1.3 | 1.95～2.35 | 1.1～1.5 | 1.8～3.0 | 0.8～1.2 |
Transparent Type
| ? | Effective Area | Outer Size |
|---|---|---|
| 4:3 | 245×175 | 320×290 |
| 16:9 | 272×153 |
310×200 ? |
