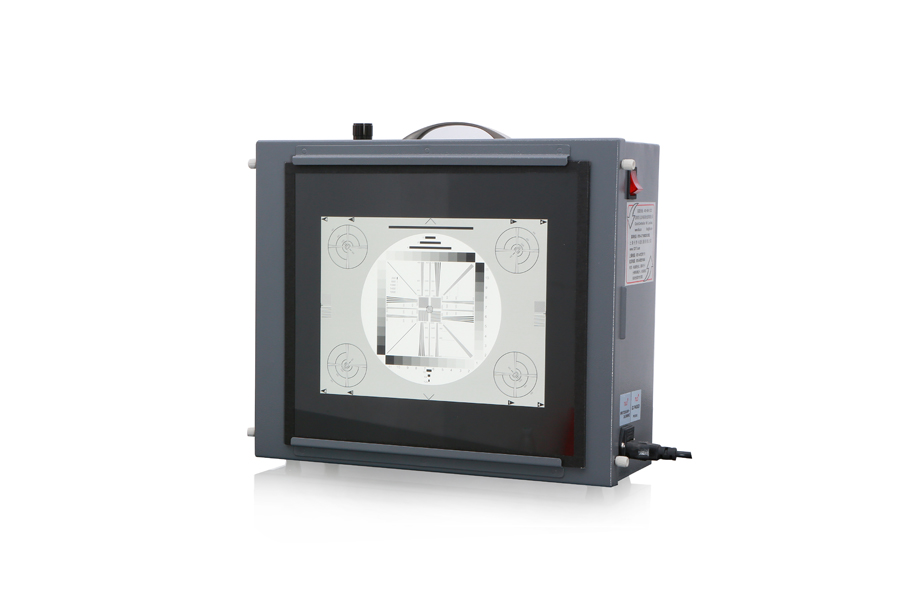

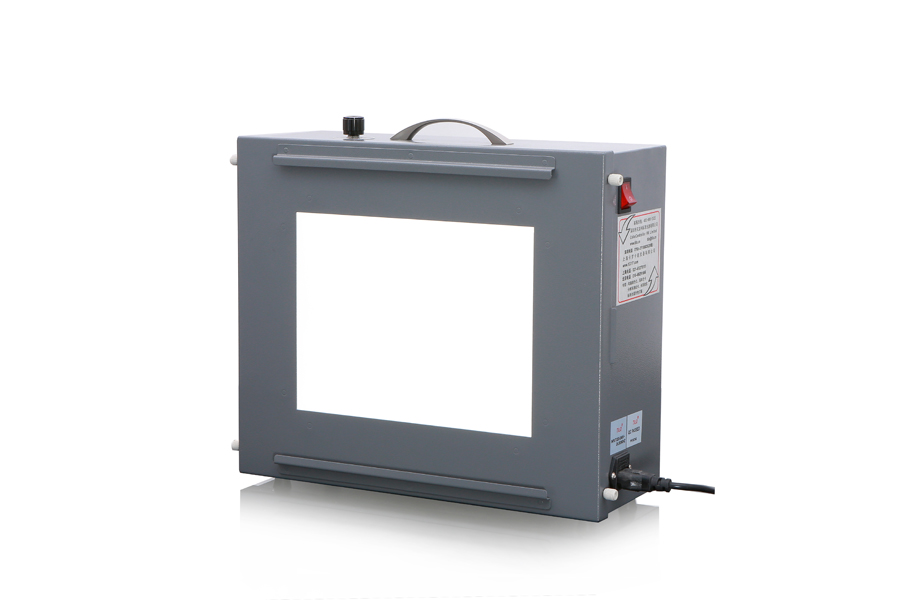

3nh Standard color viewer for camera test is to provide special lighting environment, with high illumination uniformity, light continuous adjustable, etc functions.
| Model | CC5100/CC3100 |
| Type | Transparent |
| Size | 38.5W*34H*15Dcm |
| Illuminance | 250 ~ 10000Lux adjustable |
3nh Standard color viewer for camera test is to provide special lighting environment, with high illumination uniformity, light continuous adjustable, etc functions.
Specification
| Model | CC5100/CC3100 |
| Light source: | 5100K(5100K±200k) *4,3100K(3100K±200k) *4 |
| Uniformity: | >95% |
| Luminous Source: | 100 ~ 4400cd/m2 adjustable |
| Illuminance: | 250 ~ 10000Lux adjustable |
| Power supply: | AC230V 50/60HZ |
| Lighting method: | High Frequency lighting method 20KHz |
| Operating temperature: | 10～40℃ |
| Operating humidity: | Below 80%(avoid dew) |
| Major diameter dimension: | 38.5W*34H*15Dcm |
| Luminance plane dimension: | 25W*19Hcm |
?
